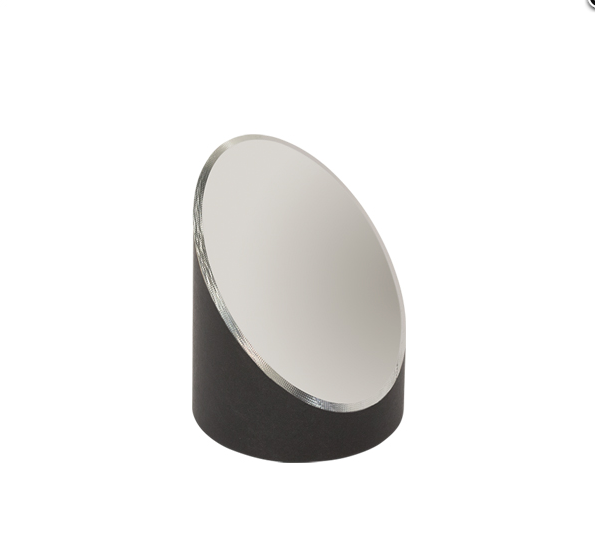

Off-axis parabolic mirror, UV enhanced aluminum coating
Off-axis parabolic mirror, UV enhanced aluminum coating
price ￥1835
Product model Off-axis parabolic mirror, UV enhanced aluminum coating This product is a public welfare product. If you place an order, you will donate 1 ‰ of the amount to assist primary and secondary education in remote areas
Delivery time 30-60/day
Specifications
Average reflectivity >90% at wavelengths from 250 - 450 nm
No spherical oratic aberration when collimating a point source or focusing a collimated beam
Effective focal length: 15 mm (0.59 inches) 8 inches (203.2 mm)
Surface roughness: <100 Å (RMS)
Clear aperture: >90%
Three mounting adapters are available for the Ø1/2", Ø1", and Ø2" versions:
SM threaded mounting adapter
SM-mountless mounting adapter
SM-post mounting adapter with 8-32 (M4) thread
Right angle adjustment bracket for 30 mm cage and Ø1/2" or Ø1" OAP mirrors
Thorlabs' off-axis parabolic (OAP) mirrors are first surface mirrors, the reflecting surface is a section cut from a parent paraboloid. They are capable of focusing collimated beams or collimating divergent light sources aberration-free, their off-axis design allows the focus to be spatially separated from the optical axis. The reflective design eliminates the phase delay and absorption losses that are introduced by transmissive optical elements
- 波长范围 Wavelength range 250-450nm
- 材质Material Aluminum film
- 通孔through hole Perforated
